Input: | 14 punten | inputtype: | PNP/NPN |
---|---|---|---|
Output: | 10 relaisoutput | Voltagewaaier: | 5-30VDC |
Hoog licht: | PLC van de Unimat Industriële Automatisering,Industriële de Automatiseringsplc van PNP,Industriële PLC van Automatiseringsunimat |

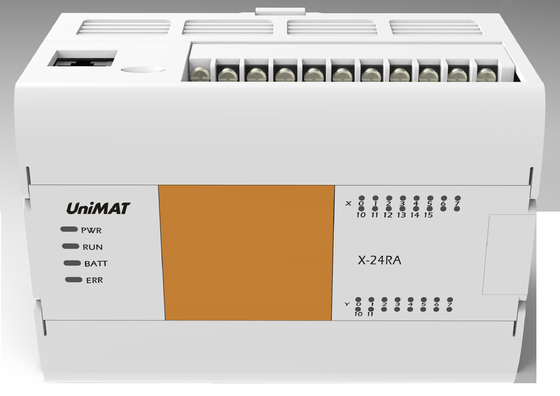

De Automatiseringsplc 14 van hoge Prestatiesunimat Industriële punteninput
PLC van China Lage Kostenplc
Voeding | ||
Het werk voltage (Vac) | Min | AC 100V |
Typisch | AC 220V | |
Maximum | AC 240V | |
Beperkt Inputvoltage | AC 85V~AC100V, AC 240V~AC264V | |
Ingangsstroom | 60/30mA (cpu, 120/240VAC) | |
Schommelingsstroom | 20A, 264V AC 时 | |
Zekering | 2A 60V die langzaam smelten | |
24V (Maximum) voeding | 300mA | |
Digitale input | ||
Bouw ingevoerd in | 14 vaste punten | |
Inputtype | PNP/NPN | |
Nominale spanning | 24VDC, hoge snelheid 6.4mA (X0~X5), gemeenschappelijke 4mA (X6~X27) | |
Maximum ononderbroken toelaatbaar voltage | 30V gelijkstroom | |
Schommelingsvoltage | 35VDC, tweede 0.5 | |
Logica 1 [minimum] | 15VDC, Hoge snelheid 3.7mA (X0~X5), gemeenschappelijke 2.5mA (X6~X27) | |
[Maximum] logica 0 | 5VDC, 1mA | |
lowable lekkagestroom [maximum] | 1mA | |
Isolution | ja | |
Foto-elektrische isolatie | 500VAC 1 min | |
Tarief van de hoge snelheids het tegeninput | Eenfasige 200KHz [3]; Ab-fase 100KHz [3], het ondersteunende 4 keer tellen | |
Digitale outputkenmerken | ||
Bouw output in | 10 relaisoutput | |
Outputtype | droog contact | |
Nominale spanning | 220VAC/24VDC | |
Voltagewaaier | 5~30VDC | |
5~250VAC | ||
(Maximum) schommelingsstroom | de Plichtsverhouding van 5A 4s 10% | |
Geschatte stroom per (Maximum) punt | 2A | |
Lamplading [maximum] | 30W DC/200W AC | |
Reactietijd (de lading van 24V, 2K-) | 10ms | |
Inschakelenweerstand [contact] | 0.2Ω (Nieuw maximum) | |
[Maximum] impulsfrequentie | 1Hz |
Afmeting
